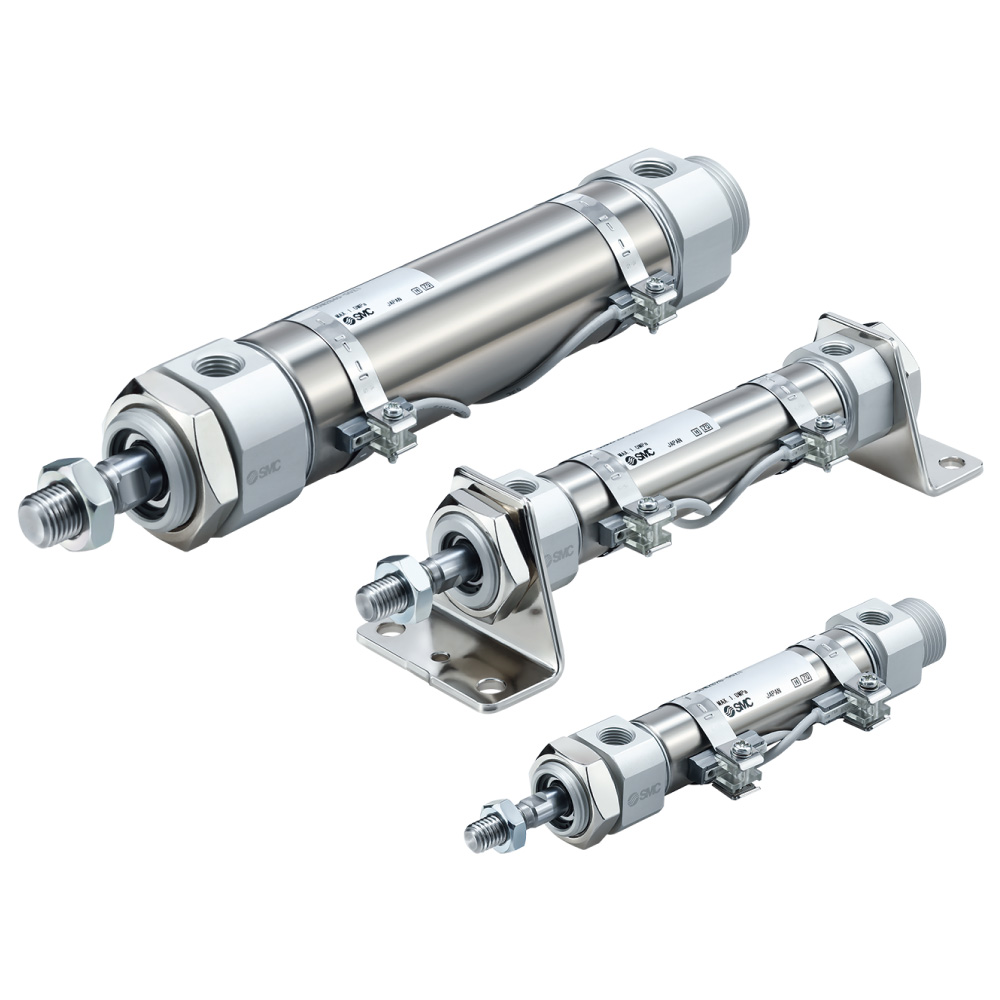

Air Cylinder CM2
-
- ・A double rod type, a single acting type, a non-rotating rod type, and
-
- a direct mount type have been added.
-
- ・Made-to-order options have been added.
-
- Special port location (-XC3), Made of stainless steel (-XC6), Dust resistant
-
- cylinder (-XC4), Heat-resistant cylinder (-XB6), etc.
-
- ・Cylinder with rod end bracket is standardized.
-
- ・Interchangeable in mounting with the existing model
-
- ・Various mounting bracket options
-
- Mounting brackets suitable for various installation conditions
-
- Improved mounting flexibility
-
- ・Part numbers for products with a rod end bracket and/or a pivot bracket
available
Features & Compatibility
Air Cylinder CM2 Series
Series Variations
Various mounting bracket options
· Mounting brackets suitable for various installation conditions
· Improved mounting flexibility
Part numbers for products with a rod end bracket and/or a pivot bracket available
It is not necessary to order a bracket for the applicable cylinder separately.
* Mounting brackets are shipped together with the product but do not come assembled.
Easy fine adjustment of auto switch position
Fine adjustment of the auto switch set position can be performed by loosening the auto switch attached screw without loosening the auto switch mounting band. Operability improved compared with the existing auto switch set position adjustment, where the complete switch mounting band requires loosening
-
Overall length is shortened with boss-cut type.
Boss for the head cover bracket is eliminated and the overall length of cylinder is shortened.
-
No environmental hazardous substances used
Compliant with EU RoHS 10 directive
Specifications, performance, and mounting method are the same as those of the existing model.
Stroke Variations
Series Variations
∗ For details about the clean series, refer to the Web Catalog
