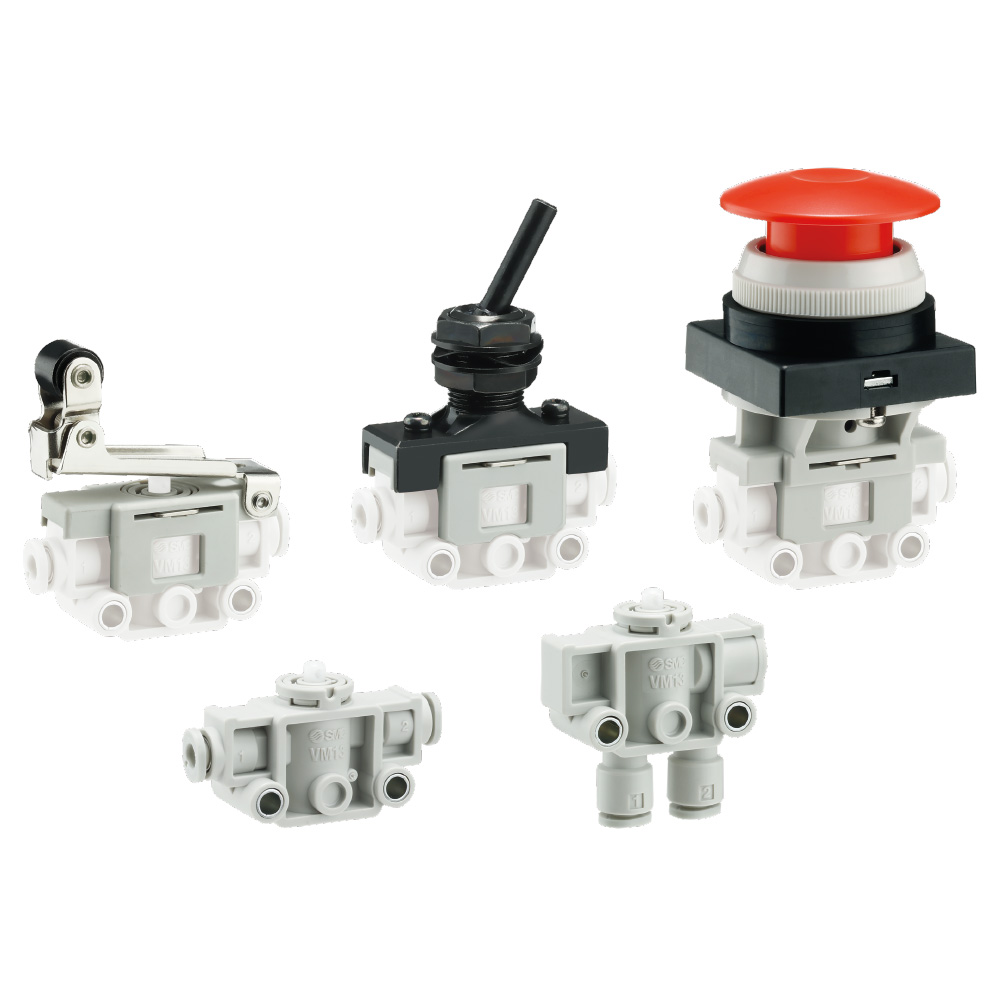

2/3-Port Mechanical Valve with One-touch Fitting VM100F
-
- ・Built-in One-touch fitting reduced installation space and less piping work
-
- ・Space saving
-
- Approx. 35% reduction (25.8 mm shorter) due to the built-in One-touch fitting
-
- ・Lightweight
-
- 80% reduction (48 g lighter) due to the resin body material
-
- ・Less man-hours replacing the actuator
Mounting using a clip makes replacement easier.
Features & Compatibility
Built-in One-touch fitting reduced installation space and less piping work
Space saving･Lightweight
Built-in One-touch fitting Approx. 35% reduction (25.8 mm shorter)
Less man-hours replacing the actuator
Mounting using a clip makes replacement easier.
Variations
Actuator type
Mechanical operation: 5 types
Manual operation: 7 types
Mounting
With miniature indicator (Bottom ported only)
Possible to check if air pressure is applied
Piping direction
Mounting interchangeable with the conventional model
Mounting pitch and height are the same as the current model
Available in vacuum applications
−100 kPa to 0.7 Mpa
Actuator Variations
