5-Port Solenoid Valve/Plug-in Type S0700
-
- ・A variety of common wiring methods are available.
-
- ・Slim, compact plug-in manifold: Required installation space reduced by
-
- 45%*, Height reduced by 20 mm*
-
- * Compared with plug-in manifold stacking base
-
- ・4-position, dual 3-port valve
・Manifold type no.: SS0751, SS0750
Features & Compatibility
Slim Compact Bar Base
Plug-in Type Stacking Base
Flow rate characteristics
C[dm3/（s・bar）]：0.39 b：0.39 Cv：0.11
Power consumption: 0.35 W
Possible to drive cylinders Up to ø25 （At 300 mm/s）
Plug-in Manifold Variations

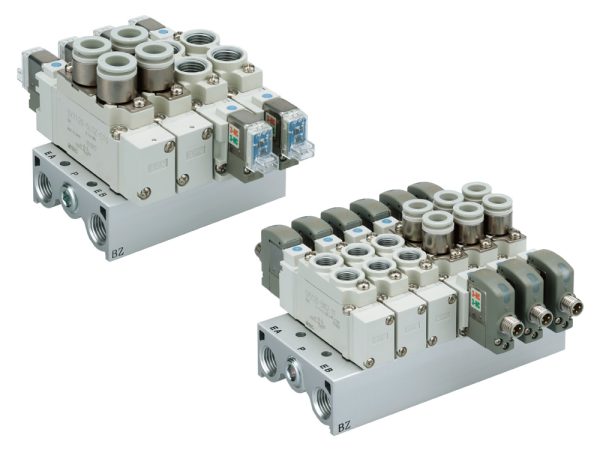

4-Position Dual 3-Port Valve
Adopted Direct Manual.
Optimum Actuation Size Chart of Air Cylinder
5 Port Solenoid Valve Plug Lead Type Series S0700
