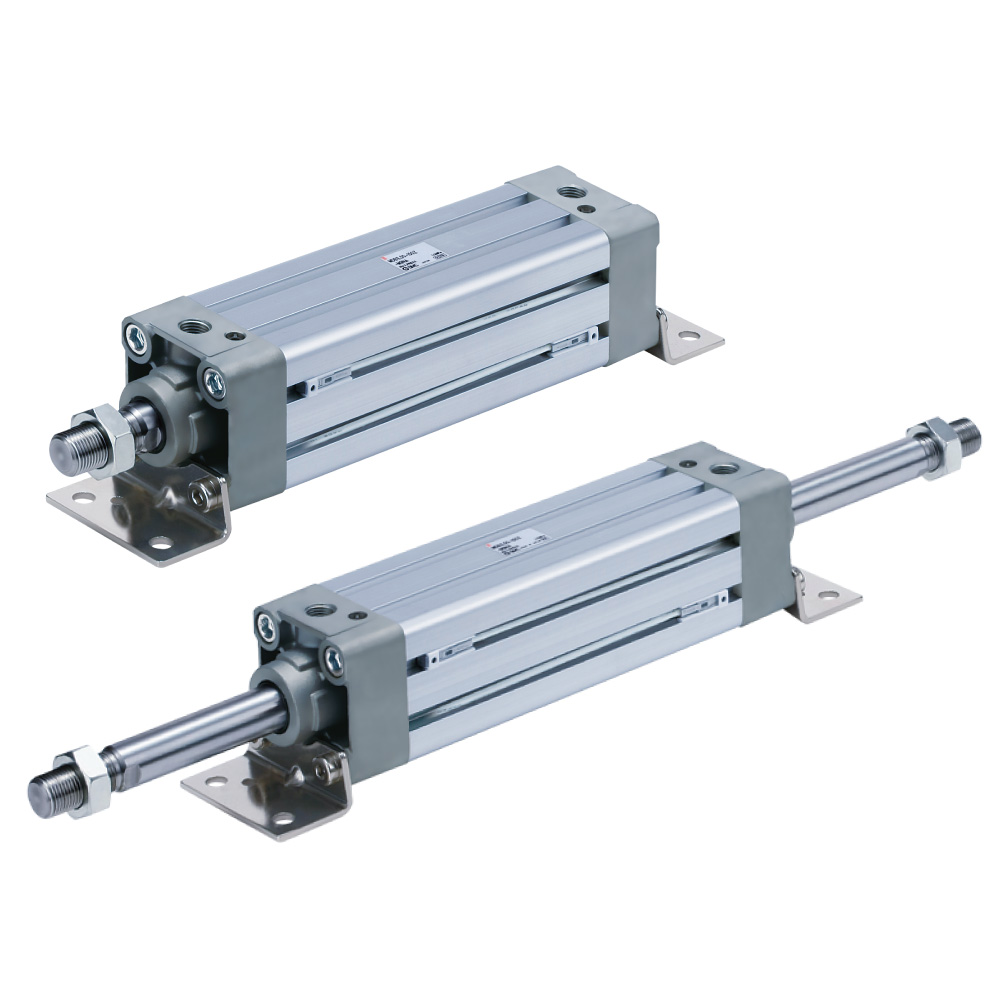

Air Cylinder MB1/MDB1
-
- ・Weight: 10% lighter (ø50-100 stroke)
-
- Weight has been reduced by changing the shape of the rod cover and head cover.
-
- ・Small auto switches can be mounted on 4 surfaces.
-
- ・Fastener on auto switch mounting groove for dust-prevention (Option)
・With auto switch (MDB1 series: MDB1, MDB1W, MDB1K)
Features & Compatibility
■Weight: 10% lighter (ø50-100 stroke)
Reduced weight by changing the shape of the rod cover and head cover.
■Can mount small auto switches on 4 surfaces.
■Dust-prevention from fastener (Option)
■Applicable speed/load
- Piston speed: Max. 1000 mm/s (ø32 to ø125)
- Load yield: See table below.
■Mounting dimensions are the same as the existing product.
■Non-rotating rod type added. New
- Series MB1K-Z
■Part numbers with rod end bracket and/or pivot bracket available
Not necessary to order a bracket for the applicable cylinder separately
Note) Mounting bracket is shipped together with the product, but not assembled.
■Various mounting bracket options
- Suitable mounting brackets can be selected for the installation condition.
- Improved amount of mounting freedom
■Series Variations
