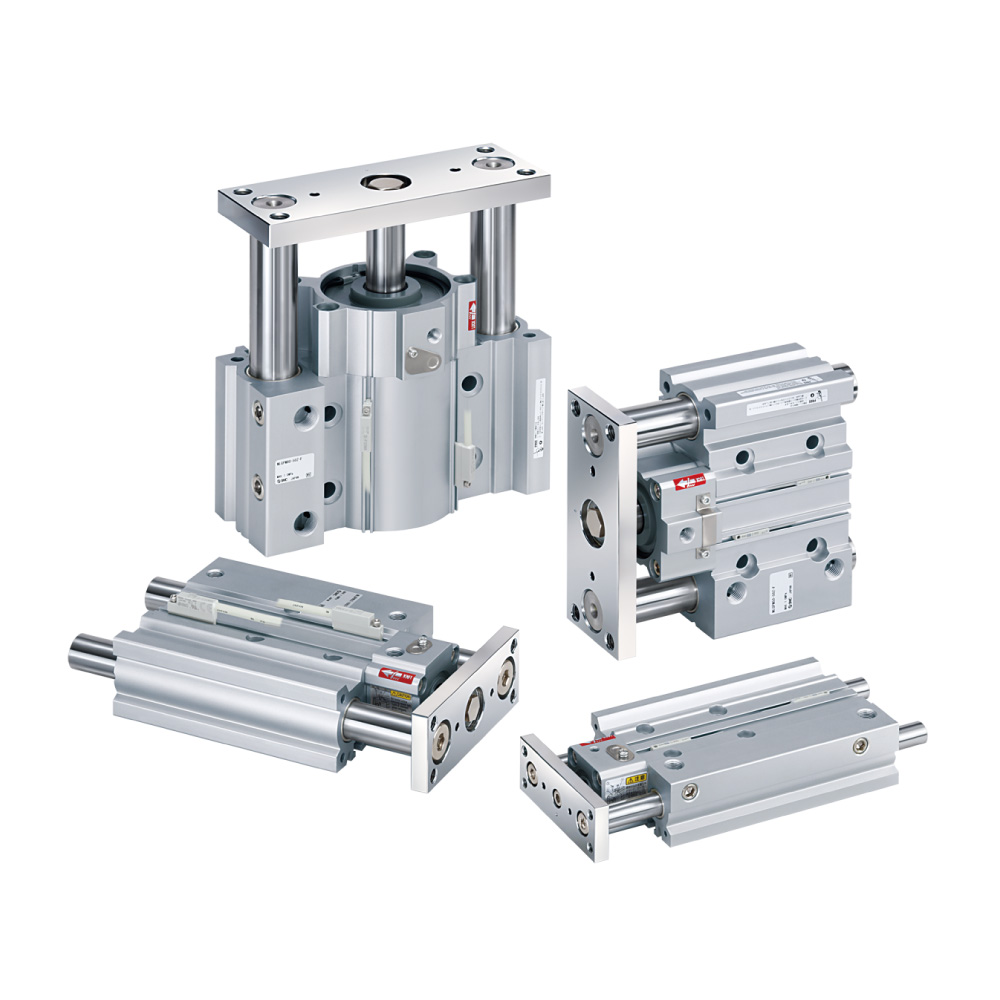

Compact Guide Cylinder with Lock MLGP
-
- ・Stopping possible at any stroke position
-
- Drop prevention when the pressure is decreased or the residual pressure is released
-
- ・Weight reduced by up to 17% with a shorter guide rod and thinner plate
-
- Guide rod: Max. 22 mm shorter (Compared with the existing MLGPM)
・Small auto switches or magnetic field-resistant auto switches can be directly mounted on two surfaces.
Features & Compatibility
ø20, ø25, ø32, ø40, ø50, ø63, ø80, ø100
MLGP-Z Series Dec-18
- Stopping possible at any stroke position.
Drop prevention when the pressure is decreased or the residual pressure is released. - Weight reduced by up to 17% with a shorter guide rod and thinner plate
Guide rod: Max. 22 mm shorter (Compared with the existing MLGPM) - Small auto switches or magnetic field-resistant auto switches can be directly mounted on two surfaces.
Simple and reliable locking mechanism is effective in drop prevention when there is a pressure loss.
Low profile with compact lock unit
Easy manual unlocking
Locking direction is selectable.
∗ The symbol for the cylinder with lock in the pneumatic circuit uses SMC original symbol.
Weight: Max. 17% lighter
（Compared with the existing MLGPL）
Guide rod: Max. 22 mm shorter
（Compared with the existing MLGPM）
Small auto switches or magnetic field-resistant auto switches can be directly mounted on two surfaces.
Four types of mounting
Positioning holes are available on three surfaces.
・Easy positioning ・Knock pin holes provided on each mounting surface
Piping is possible from two directions.
Two types of guide rod bearing
