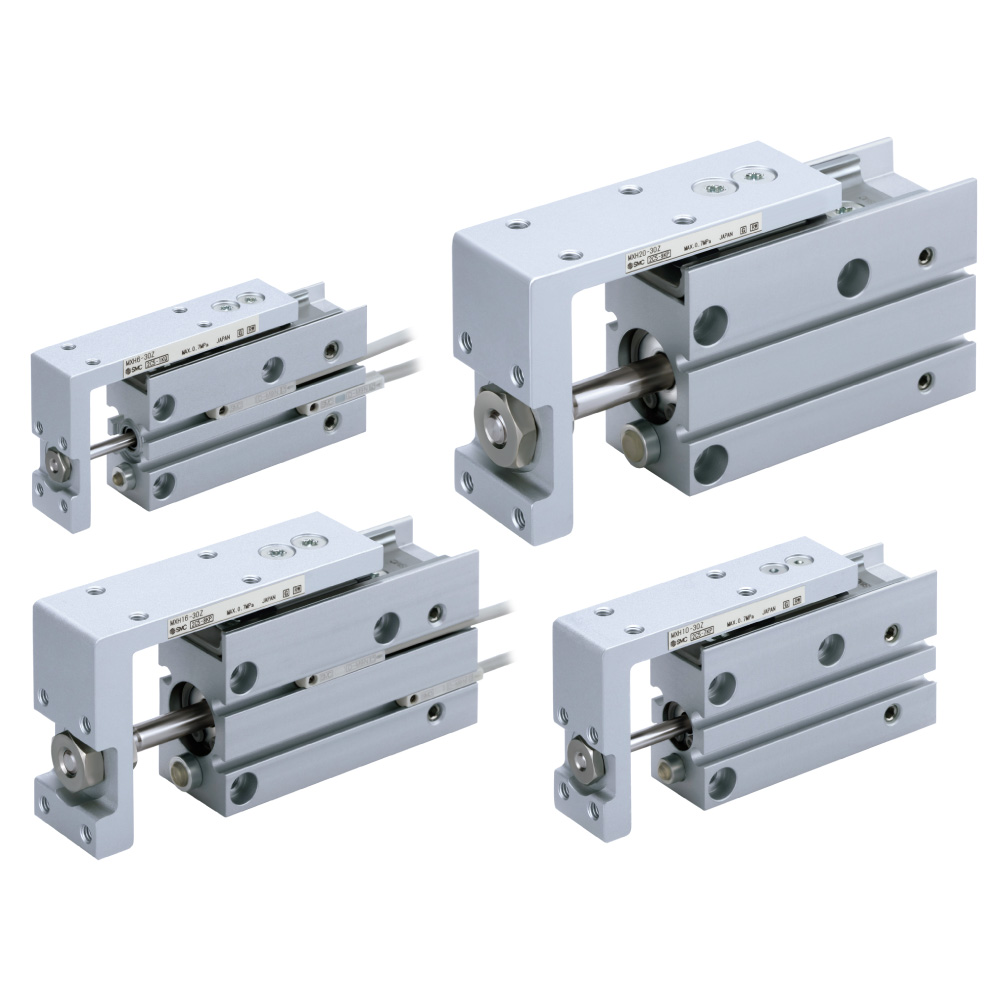

Compact Slide MXH
-
- ・Allowable moment improved by up to 240%
-
- ・With new high rigidity linear guide
-
- Allowable moment improved
-
- ・The weight has been reduced by incorporating a new high rigidity linear guide and piston.
-
- Weight: 19% reduction (ø20-10 stroke)
・Piping is possible in 3 directions.
Features & Compatibility
With new high rigidity linear guide
Allowable moment improved by up to 240%
High allowable moment
Traveling parallelism is the same as the existing model.
Deflection at the extended position of the table is the same as the existing model.
Small auto switches capable
(D-M9□, D-A9□)
The weight has been reduced by incorporating a new high rigidity linear guide and piston.
Weight 19% reduced (ø20-10 stroke)
Mounting is completely interchangeable with existing model.
Dimensions including workpiece mounting dimensions and cylinder mounting dimensions are the same as the existing model.
Piping is possible in 3 directions.
Application Example
Useful when long stroke/travel is required
Series Variations
