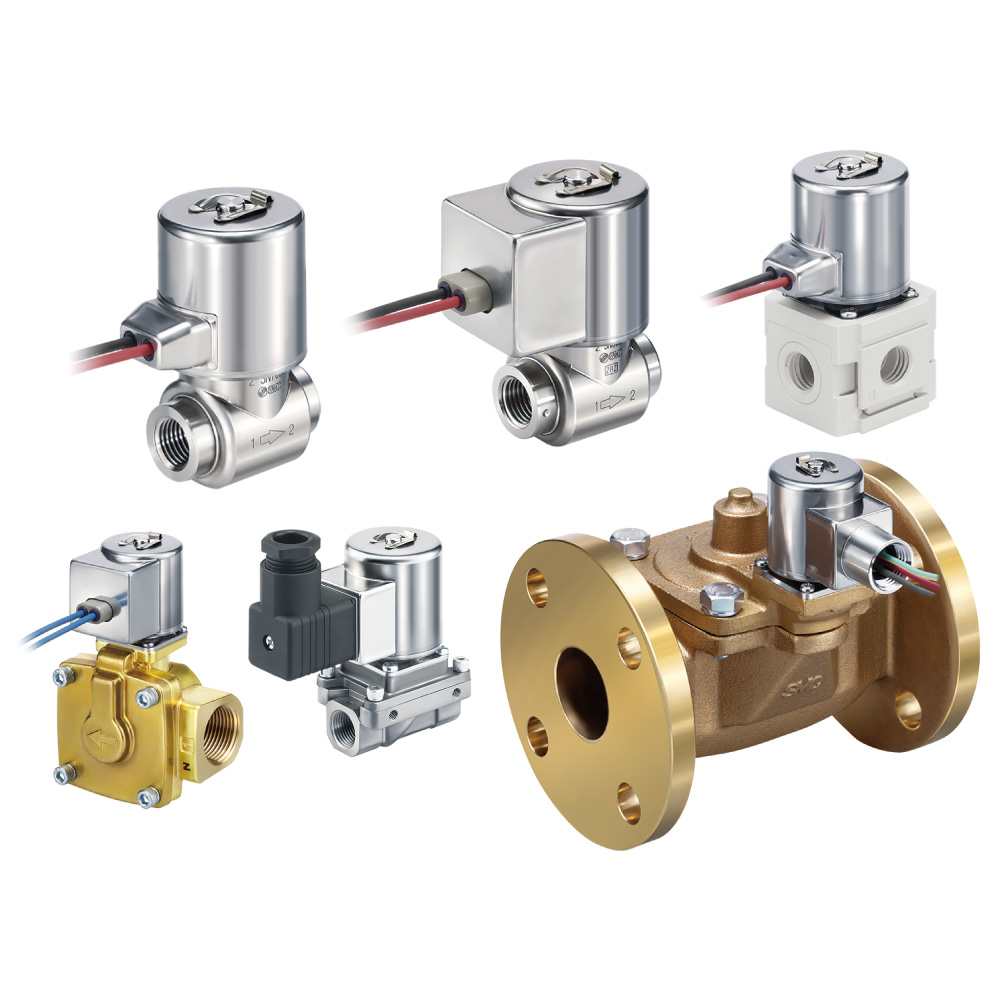

Direct Operated/Pilot Operated 2-Port Solenoid Valve JSX/JSX□
-
- · A pilot operated steam type (JSXP series) has been added.
-
- · Improved environmental resistance due to the stainless steel coil cover
-
- [IP67 enclosure/NEMA4X∗] ∗ IP65 for models with a DIN terminal
-
- ·Space saving
-
- Compact: Valve volume reduced by 25%*, Lightweight: Weight reduced
-
- by 30%*
-
- * Compared with the existing model
-
- ·Energy saving
-
- Coil force: 10% increase*, Power consumption: 14% reduction*
-
- * Compared with the existing model
-
- ·360° lead wire insertion and removal is possible.
·Improved weather resistance in outdoor environments
Features & Compatibility
Improved environmental resistance due to the stainless steel coil cover [IP67 enclosure/NEMA4X]
Series Variations
Space saving
Compact: Valve volume reduced by 25% (Compared with the existing model),
Lightweight: Weight reduced by 30% (Compared with the existing model)
Full-wave rectifier type (AC specification: Insulation type Class B)
-
・Improved durability
Extended service life due to the special construction
(Compared with the existing shading coil)・Reduced buzzing noise
Due to being rectified to DC by the full-wave rectifier
・Reduced apparent power
* Class B, N.C. valve (Compared with the existing model)
9.5 VA → 8 VA （JSX20/JSXD60, 70 Series）
12 VA → 9.5 VA（JSX30/JSXD80, 90 Series） -
・Improved OFF response
Specially constructed to improve the OFF response when operated with high viscosity fluids such as oil
・Low-noise construction
Specially constructed to reduce metal noise during operation
Improved weather resistance in outdoor environments
Full-wave rectifier type (AC specification: Insulation type Class B)
Electrical entry
