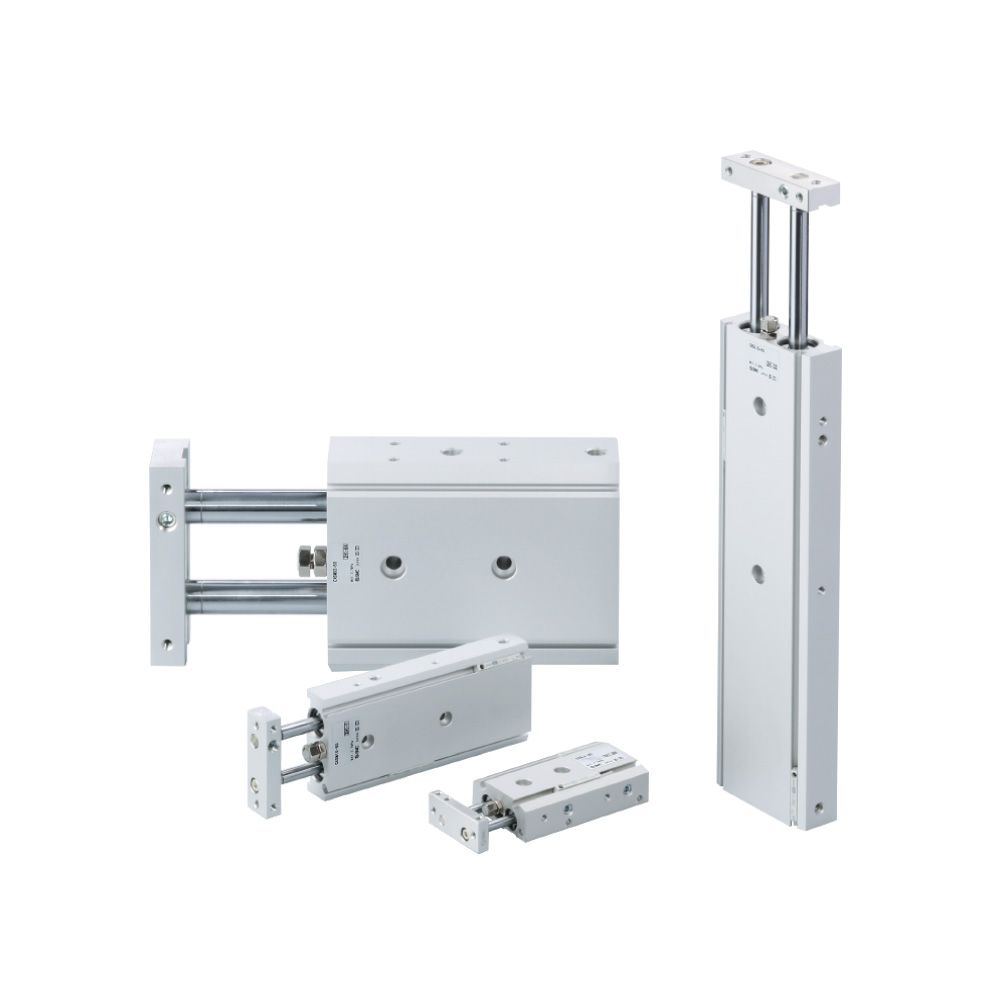

Dual Rod Cylinder CXS2
-
- ・Double piston construction provides twice the output force.
-
- ・Non-rotating accuracy of ±0.1° because of the dual rod construction
-
- ・Allowable kinetic energy: 0.016 J (7 times that of the existing model)
-
- ・Max. piston speed: 800 mm/s (2.6 times that of the existing model)
-
- ・Max. standard stroke increased
-
- ・Mounting dimensions are compatible with the existing CXS series
products.
Features & Compatibility
Features
Double piston construction provides twice the output force.
Non-rotating accuracy of ±0.1° because of the dual rod construction
Piping is possible in 2 directions. (Possible in 3 directions for ø6)
Weight reduced by 7%: 0.15 kg → 0.14 kg (Compared with the CXS□ series, ø10, 10 mm stroke)
Stroke is adjustable up to −5 mm.
Compact auto switches are mountable. (D-M9□, D-A9□)
Workpiece can be mounted from 3 directions.
Body can be mounted from 4 directions.
