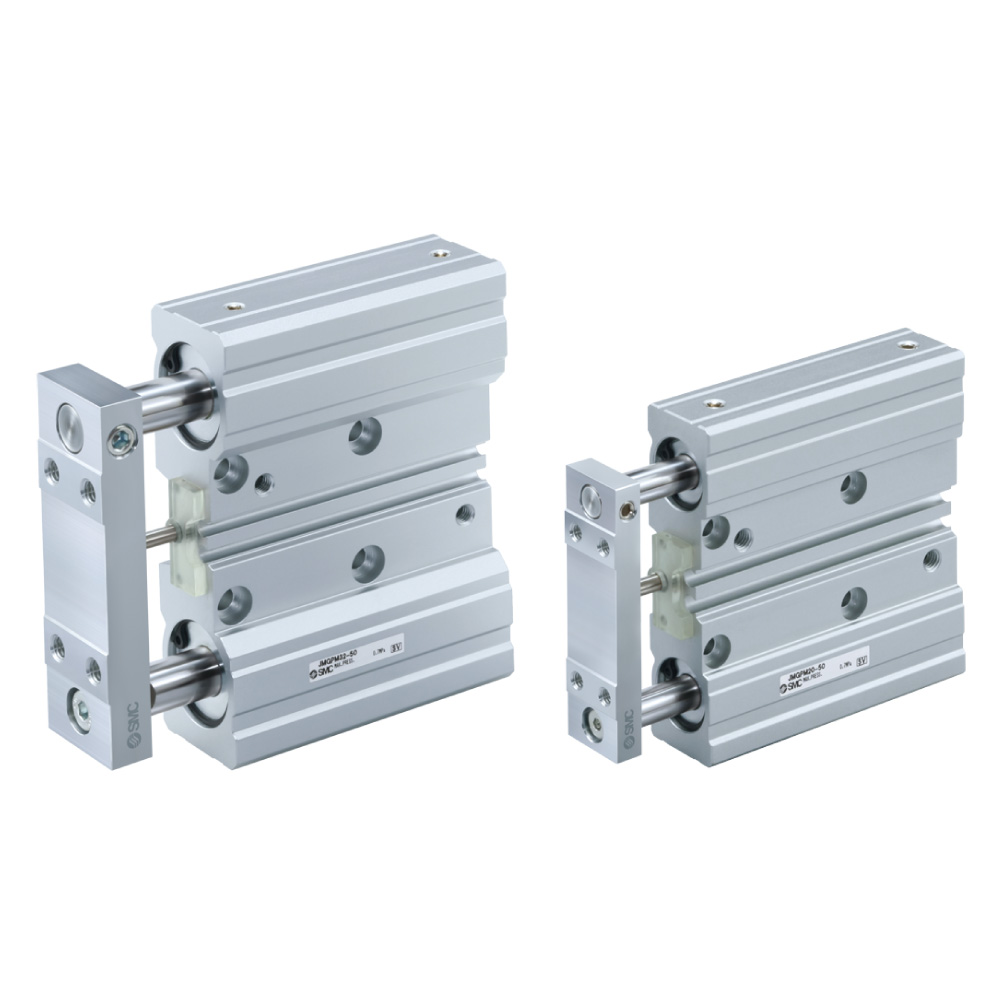

Dual Rod Cylinder JMGP
-
- ・Compact: Overall length shortened by 30.5 mm, Height shortened by 16 mm
-
- ・Weight: Max. 69% lighter (0.32 kg → 0.1 kg)
-
- ・3 mounting options:
-
- Top mounting, Bottom mounting, Rear mounting
-
- ・Piping is possible in 4 directions.
-
- ・The solid state auto switch D-M9□ is mountable.
・Suitable for pushing, lifting, or clamping in a transport line.
Features & Compatibility
Cylinder suitable for pushing, lifting, or clamping
Overall length: Reduced by up to 48%, Weight: Reduced by up to 38%, Allowable lateral load: Increased by 6.6 times, Non-rotating accuracy: Improved by up to 40%
Allowable lateral load increased by 6.6 times
∗ Compared with the CXSM series, 50 mm stroke
Short pitch mounting is possible.
Cylinders can be installed adjacent to each other.
Internal structure
3 mounting options
Piping is possible in 4 directions.
D-M9□ solid state auto switches are mountable.
Application Examples
