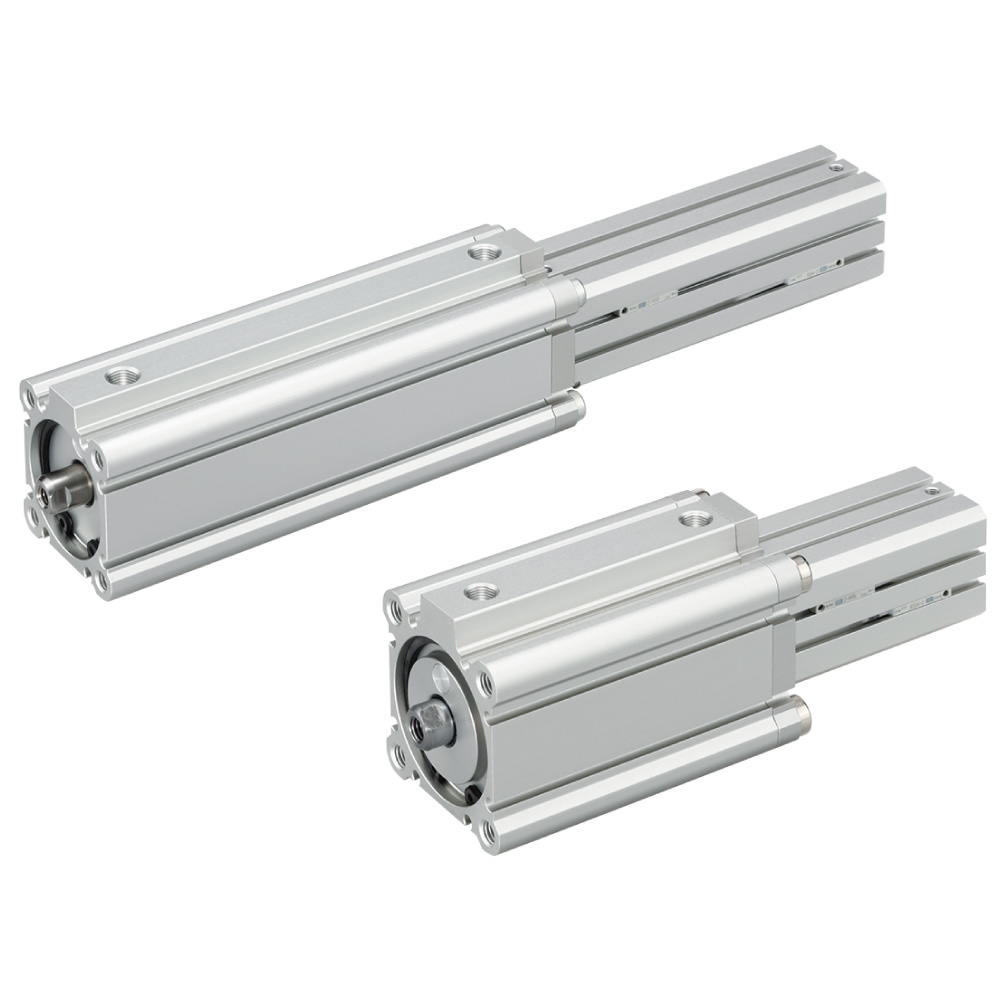

End Power Cylinder CDQ2A-X3260
-
- ・Air consumption: Max. 73% reduction
-
- 3.6 L (ANR) → 2.3 L (ANR), Compared with the CQ2 series, ø50, 200 mm stroke
-
- ・Output is generated from 5 mm in front of the stroke end. (Extending operation only)
-
- Energy saving can be achieved by using the assist cylinder to reach the output stroke position.
-
- ・Smooth operation even when output is generated
-
- ・Small auto switches can be mounted on 4 surfaces of the assist cylinder.
-
- ・The CQ2 series rod flange type is mountable.
-
- ・Optimal for applications such as press fitting and clamping that require force at the stroke end
・Controllable by a single solenoid valve in the same way as a conventional cylinder
Features & Compatibility
Air consumption: Max. 73% reduction
Output working principle
Smooth operation even when output is generated
The CQ2 series rod flange type is mountable.
-
Controllable by a single solenoid valve in the same way as a conventional cylinder
-
Output that instantaneously rises
Set output reached in 0.1 s
Application Example
