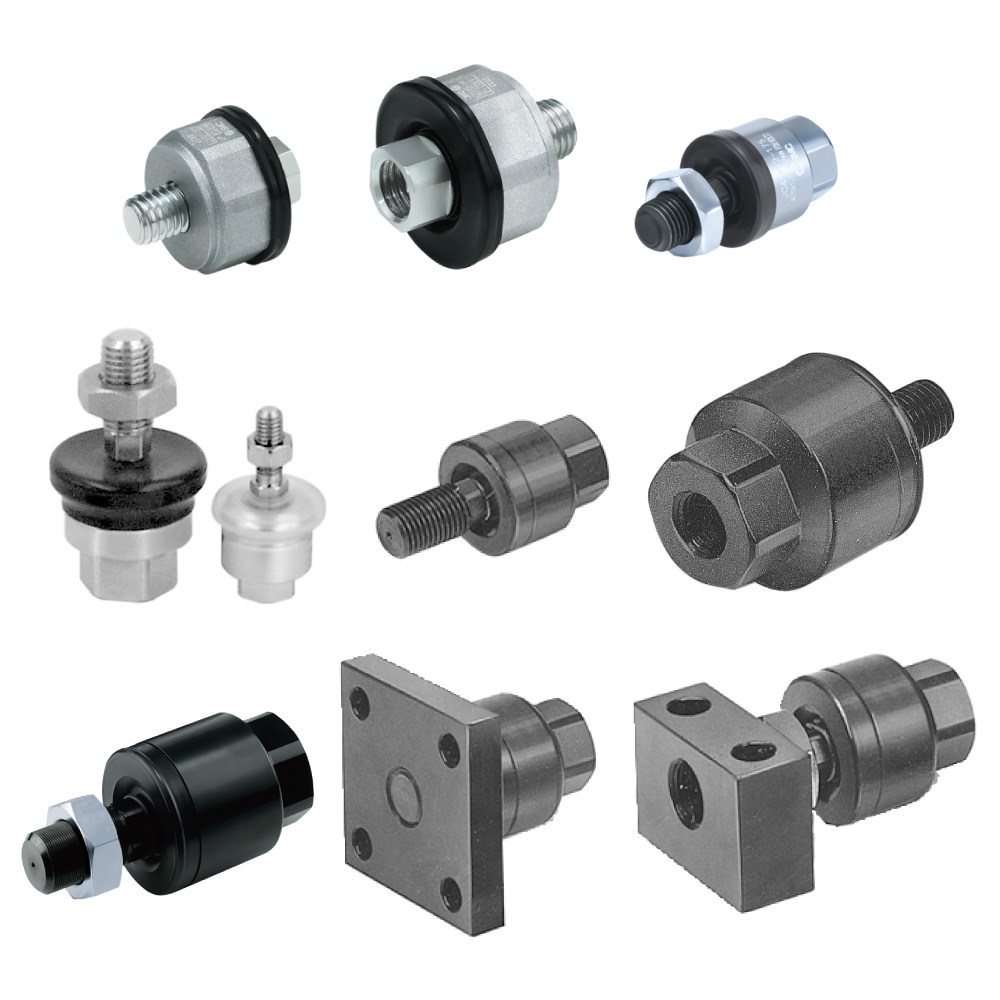

Floating Joint J
- ・The floating joint can absorb any off-centering or loss of parallel accuracy of the double acting cylinder, making centering unnecessary.
Features & Compatibility
Compact: Reduced by 19 mm
Weight: Max.56% lighter (50g → 22g)
More compact and light-weight combination are available by using the JT series with a JCM series cylinder.
Screw size is the same as the screw size for standard JA series.
With dustproof cover
Light weight With the aluminum case
Weight 30% reduction
*Compared to the existing model JA40
Product suitable for air cylinders
・Light weight mitigates lateral loads to air cylinders.
・Maximum tensile force equivalent to 1 MPa
Floating joint compensates for any misalignment between the work piece and the air cylinder.
Rotating angle : ±5°
Series Variations
Allowable eccentricity : ±0.5 to 1 mm
