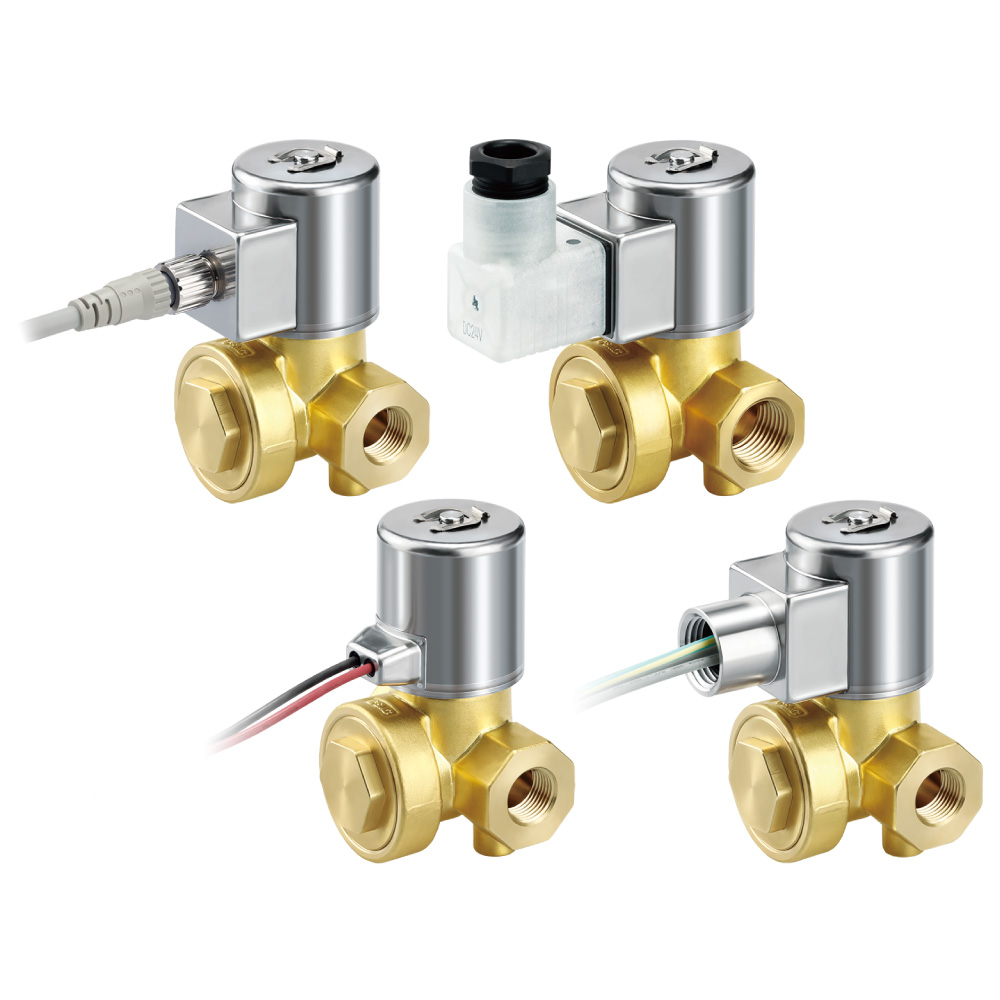

[For High-Pressure Water] Pilot Operated 2-Port Solenoid Valve JSXH-X2
-
- ・Can be used at up to 10 MPa
-
- For high-pressure washing, water spraying, and misting
-
- ・An IP67 structure with improved environmental resistance
-
- (The DIN terminal is IP65.)
-
- ・Orifice diameter [mmø]: 12
-
- ・Flow rate characteristics [Kv]: 1.7 (Port size 3/8), 1.9 (Port size 1/2)
-
- ・Easy maintenance
-
- The coil can be replaced by simply removing the clip.
・Power consumption: 8 W
Features & Compatibility
Can be used at up to 10 MPa
Orifice diameter [mmø]: 12
Flow rate characteristics [Kv]: 1.7 (Port size 3/8), 1.9 (Port size 1/2)
Power consumption: 8 W
Weight: 960 g (Port size 3/8), 920 g (Port size 1/2)
Easy maintenance
The coil can be replaced by simply removing the clip.
Electrical entry variations
Improved environmental resistance
・Dustproof/waterproof IP67 structure
・ With a stainless steel coil cover
Application Examples
