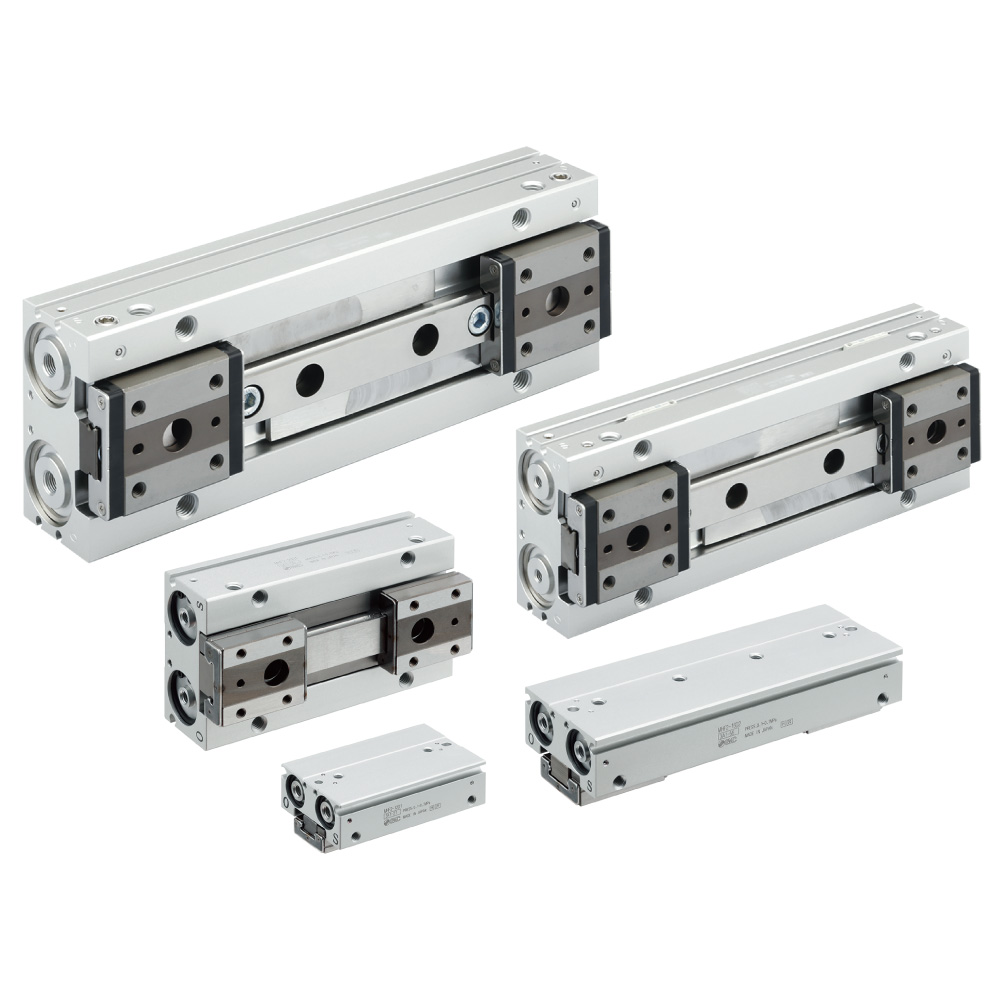

Low Profile Air Gripper MHF2
-
- ・ø25 and ø32 have been added.
-
- High rigidity Gripping point distance: Max. 170 mm (For ø32, at 0.4 MPa)
-
- ・Height: Max. 66% reduction Moment reduction when transferring
-
- workpieces
-
- 72.8 mm → 25 mm (Comparison with our MHZ2 Series equivalent
-
- gripping force products)
-
- ・3 types of strokes available for each size
Short stroke, Medium stroke, Long stroke
Features & Compatibility
Height: Max. 66% reduction
Moment reduction when transferring workpieces
Height reduced to approx. 1/3 with equal or greater gripping force than the MHZ2 series product
Max. allowable moment and load
Stroke selection is available.
Features
Mounting is possible from 4 directions.
Actuator Position Sensor Compatible Type (ø8 to ø20)
Bore sizes ø25 and ø32 have been added.
Uses a recirculating linear guide
Solid state auto switches (D-A9m) are mountable.
