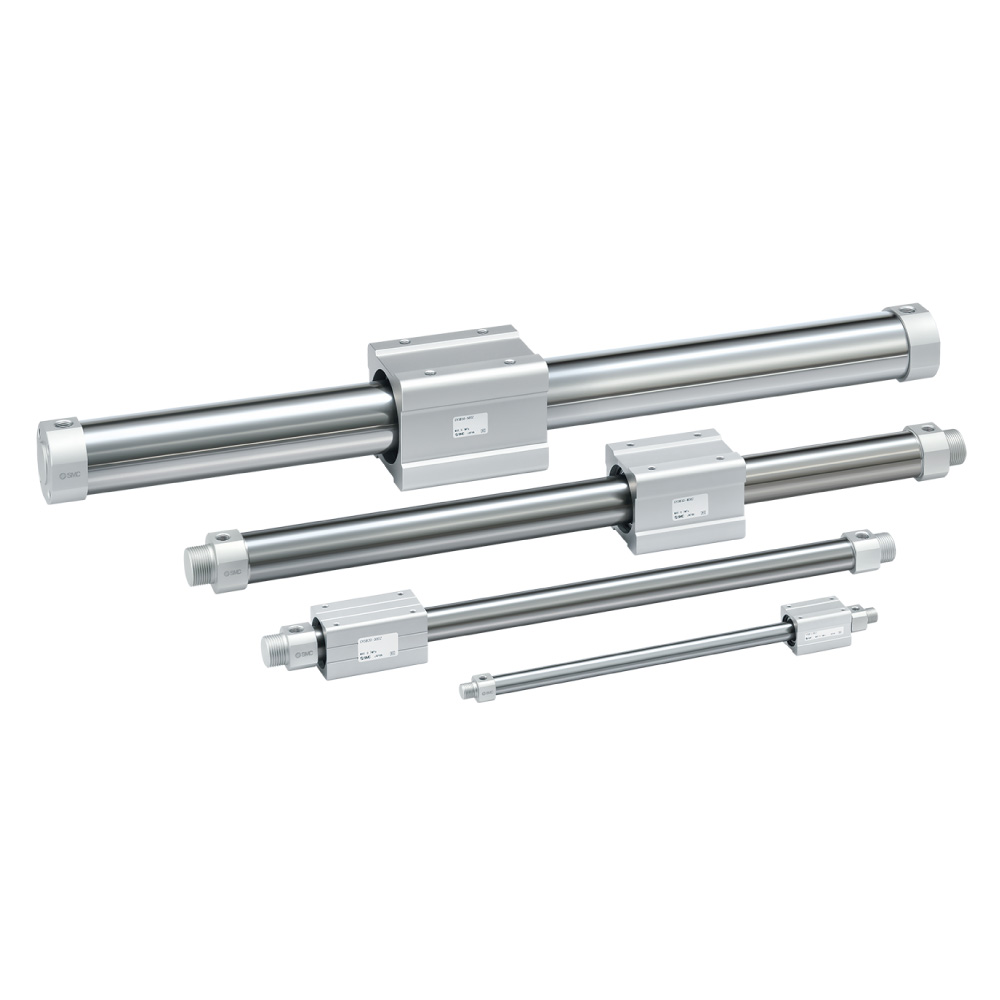

Magnetically Coupled Rodless Cylinder/Basic Type CY3B
-
- ・Lightweight
-
- The product weight has been reduced through re-designing of the body
-
- and head cover shapes and employment of magnetic coupling.
-
- Weight: 16% reduction (1.35 kg → 1.13 kg)
-
- ・Improved lubrication
-
- A Lube-retainer is installed to support lubrication retention on the piston
-
- and to ensure a lubrication film. (Bore size: ø15 to ø63)
-
- ・Stable operation
-
- Lengthening of the wear ring on the body side by, 30% at maximum,
-
- helps to achieve smooth movement.
-
- ・The specifications, magnet holding force, and mounting dimensions are
the same as those of the existing CY3B series model.
Features & Compatibility
Lightweight Weight: 16% reduction (1.35 kg → 1.13 kg)
Compared with the existing CY3B series model, ø32, 100 mm stroke
Improved lubrication
A Lube-retainer is installed to support lubrication retention on the piston and to ensure a lubrication film. (Bore size: ø15 to ø63)
Stable operation
Lengthening of the wear ring on the body side by, 30% at maximum, helps to achieve smooth movement.
The specifications, magnet holding force, and mounting dimensions are the same as those of the existing CY3B series model.
Series Variations
