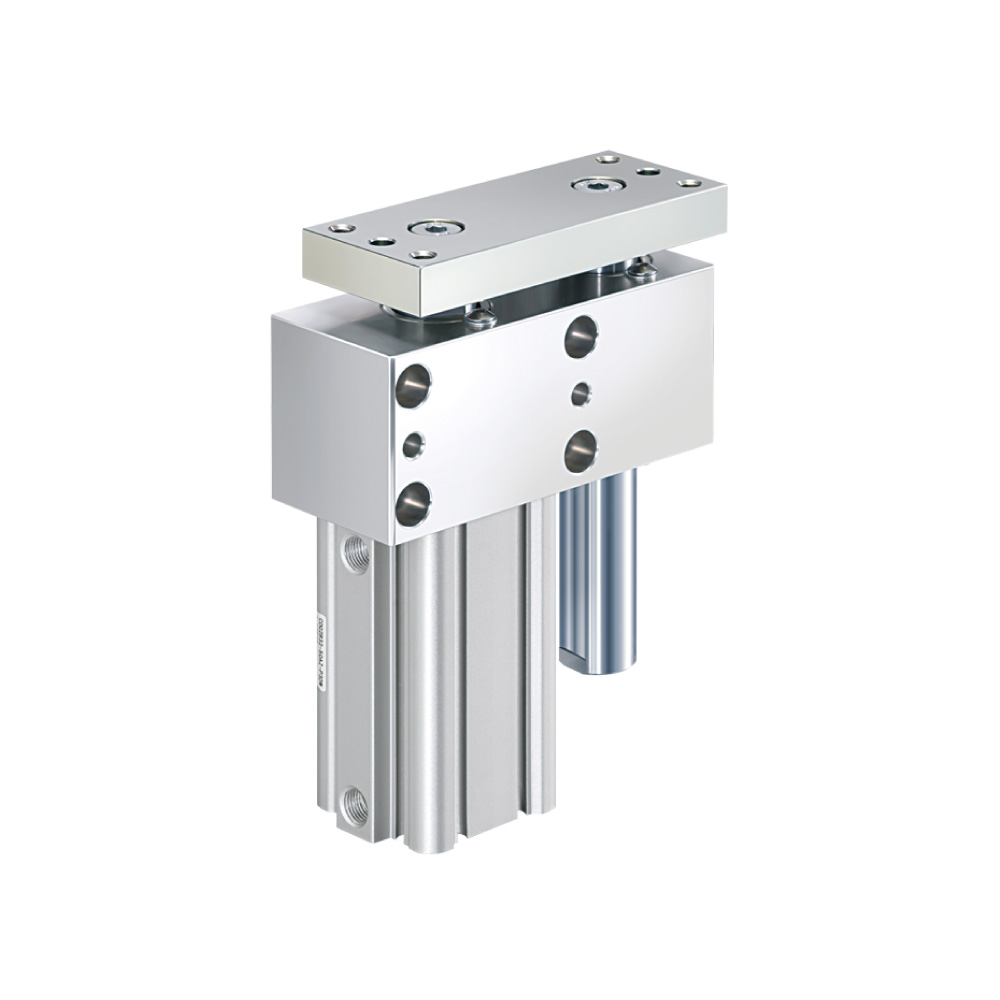

Offset Pin Shift Cylinder CDQ2B-X2839
-
- ・With high rigidity offset load capacity
-
- ・High rigidity, High precision
-
- With plate extended: Deflection of ±0.1 mm or less
-
- ・3 different port location directions can be selected.
-
- ・Can be mounted from 2 directions
-
- ・Coil scrapers equipped as standard
・Auto switches are mountable.
Features & Compatibility
■with high rigidity offset load capacity
High rigidity, High precision
With plate extended: Deflection of ±0.1 mm or less
(For ø50, 25 mm stroke, when allowable moment 29.4 N·m is applied)
3 different port location directions can be selected.
Can be mounted from 2 directions
Coil scrapers equipped as standard
Application Example
Auto switches are mountable.
Applicable Auto Switches:
- Magnetic field-resistant solid state auto switch:
D-P3DWA□,D-P4DW□ - Small auto switch: D-M9□, D-A9□
