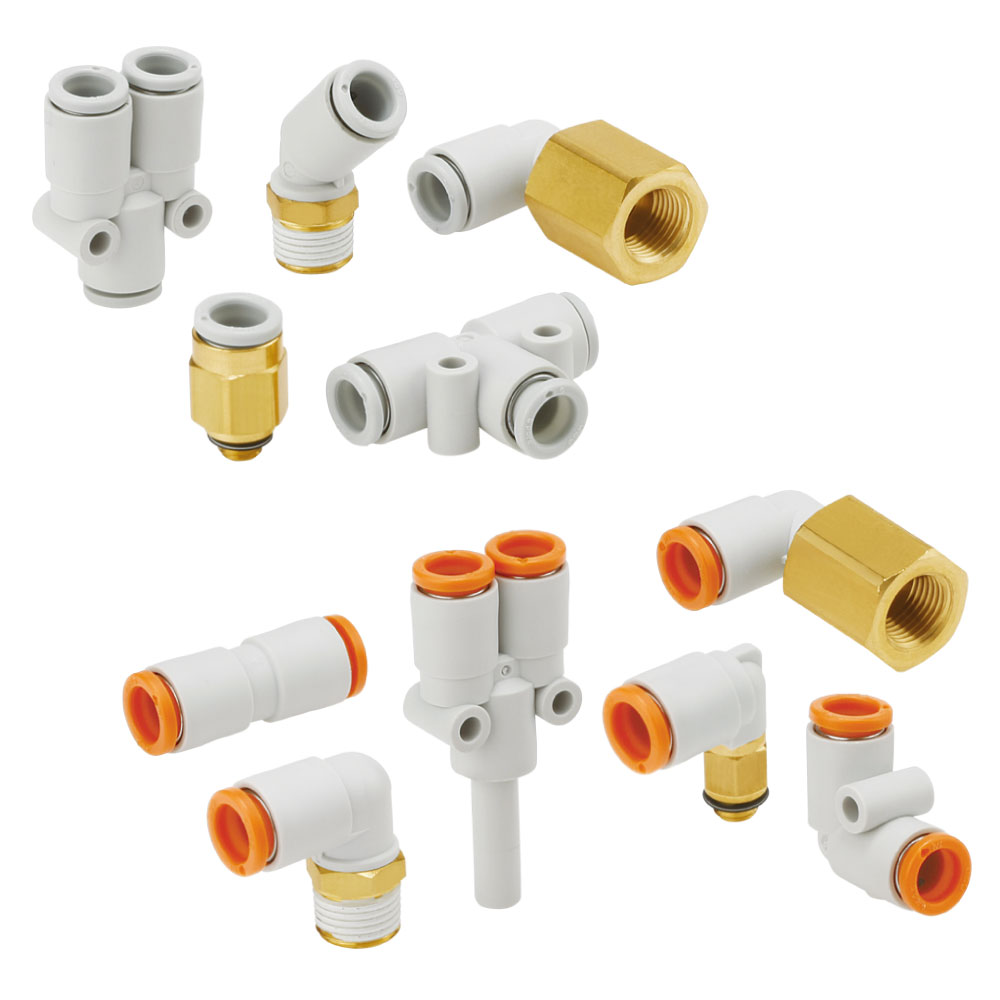

One-touch Fittings KQ2
-
- ・Can be used in vacuum to –100 kPa
-
- ・Body types: Total of 51 models
-
- ・Thread material/Surface treatment (Treated or Non-treated): 2 types
-
- ・Selectable surface treatments: Brass (No plating), Electroless nickel-plated brass
-
- ・Applicable tubing O.D.
-
-
- Round Type
-
- Metric： ø2, ø3.2, ø4, ø6, ø8, ø10, ø12, ø16
-
- Inch：ø1/8”, ø5/32”, ø3/16”, ø1/4”, ø5/16”, ø3/8”, ø1/2”
-
- Oval Type
-
- Metric： ø3.2, ø4, ø6
-
- Inch：ø1/8”, ø5/32”, ø3/16”
-
- ・Connection thread
-
- Metric：M3, M5, M6
-
- R,Rc ：1/8, 1/4, 3/8, 1/2
-
- G：1/8, 1/4, 3/8, 1/2
-
- NPT：10-32UNF, 1/16, 1/8, 1/4, 3/8, 1/2
-
- Uni：1/8, 1/4, 3/8, 1/2
-
- ・Seal method
-
- Sealant/Gasket seal
-
- Face seal
Gasket seal（Uni thread）
Features & Compatibility
Oval type release button added [New]
Improved tube insertion/removal
Insertion force: Max. 30% reduction
Removal force: Max. 20% reduction *
* Tube pulling out strength is ensured to be equivalent to existing model.
Compact and lightweight
Dimensions Height direction 24% shorter *
Dimensions Horizontal direction 23% shorter *
Weight 57% lighter *
* Existing model KQ2 series Male elbow/Applicable tubing O.D.: ø6/Connection thread: R1/8
KQ, KQ2 and KJ consolidated into “KQ2”
Enhanced variation, Lightweight, Compact
Selectable seal method *
* Connection thread: R, NPT
Selectable surface treatment
Brass (No plating)
Brass + Electroless nickel plated
Face seal adopted for threading.
Original thread construction which allows for the use of piping taper female threads (Rc, NPT)
Improved installability(Reduced tool-tightening after hand-tightening)
Oval Type/Round Type Variations
