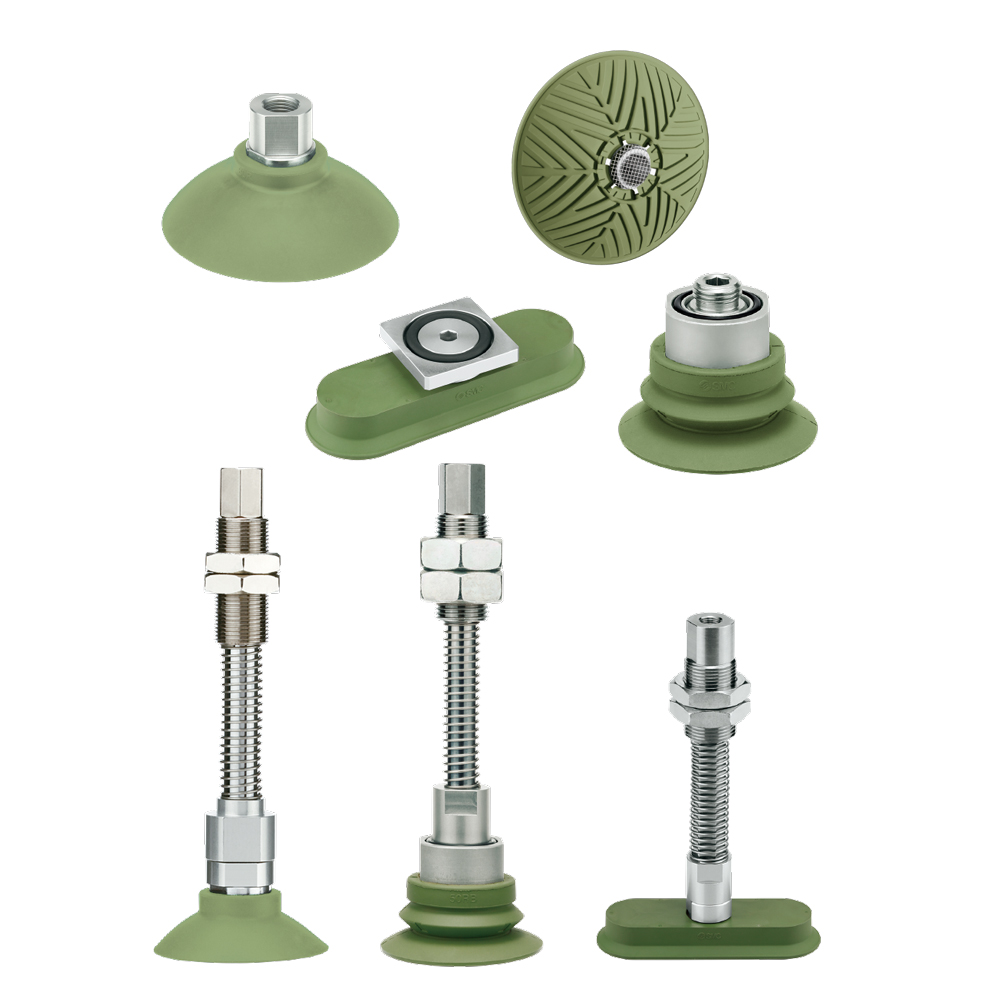

Suction Cup/With Non-slip Feature ZP3M
-
- ・An oval flat shape with non-slip feature has been added.
-
- Compatible with workpieces with an elongated adsorption surface
-
- ・Longer life (More than twice that of urethane cups)
-
- Cup material: FS61 (Fluoro-based rubber) with excellent abrasion
-
- resistance
-
- Reduced number of cup replacements
-
- ・Non-slip special ribs
-
- Diagonal ribs are radially arranged to secure the gripping force in all
-
- directions.
-
- · Prevents workpiece slippage
-
- · Secure adsorbing and transferring are possible.
-
- ・Bowl shape with excellent flexibility
-
- Curved workpieces can also be adsorbed.
-
- The cup follows the workpiece shape, making stable adsorption possible.
-
- Horizontal holding force: 387 N (Cup diameter ø100)
-
- Suitable for high-temperature workpieces (200°C)
-
- ・Suitable for workpieces with oil film
-
- As oil is ejected to the grooves between special ribs, the lateral slipping
of workpiece can be suppressed even on a steel plate with oil film.
Features & Compatibility
Non-slip special ribs
Diagonal ribs are radially arranged to secure the gripping force in all directions.
・Prevents workpiece slippage
・Secure adsorbing and transferring are possible.
Suitable for workpieces with oil film
As oil is ejected to the grooves between special ribs, the lateral slipping of workpiece can be suppressed even on a steel plate with oil film.
Mesh filter (Option)
Insert-molded cup
Mounting
Bowl bellows shape
Anti-stick grooves
The bowl shape can handle curved workpieces.
The cup follows the workpiece shape, making stable adsorption possible.
Variations
Compatible with workpieces with an elongated adsorption surface
