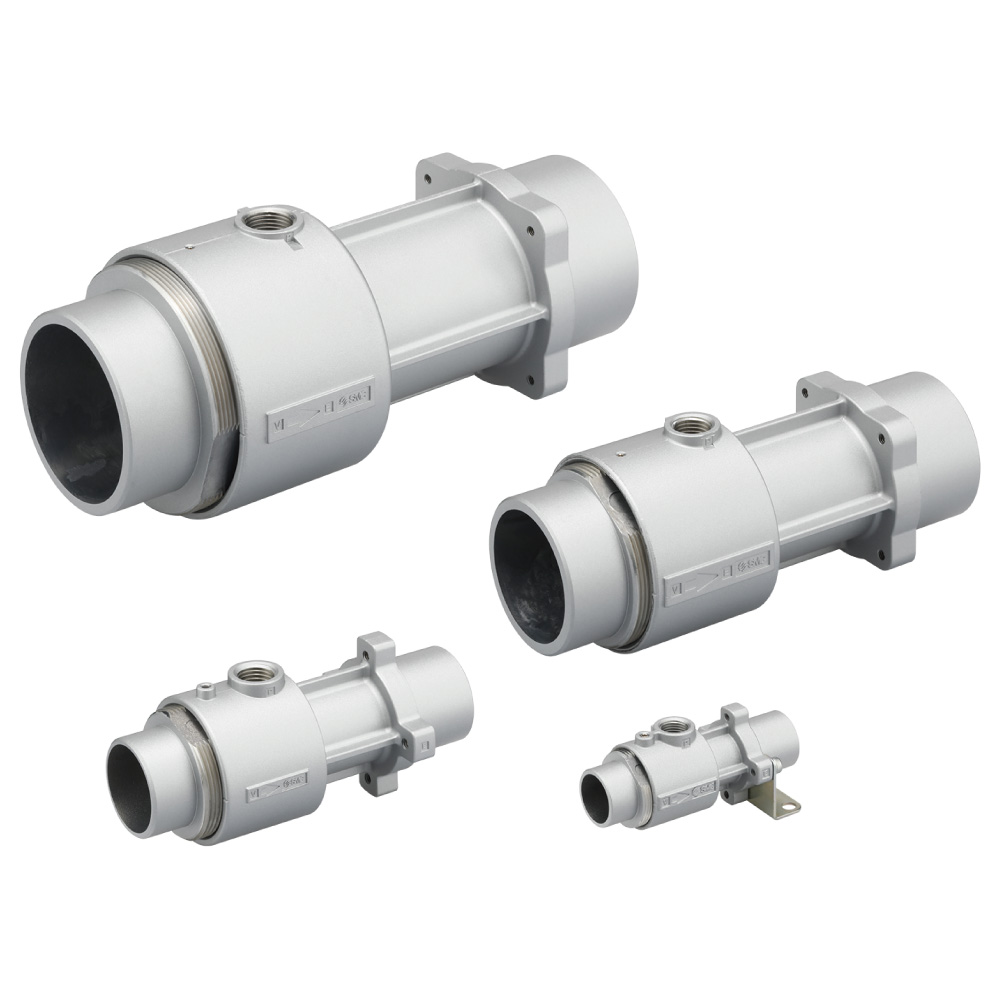

Vacuum Flow ZHV

• ・Blow and vacuum can be performed by supplying compressed air.

• 　Blow: Max. 11000 L/min (ANR)

^∗1

• 　Vacuum: Max. 8000 L/min (ANR)

^∗1

• 　∗1 Values for the ZHV40 when the supply pressure is 0.5 MPa

• ・It is possible to adjust the blow and vacuum flow rate by adjusting the

• 　nozzle position!

• ・A vacuum flow rate 3 times or more the supply air

• ・A blow flow rate 4 times or more the supply air
• • ・Weight: Max. 50% reduction (209 g ← 417 g)

  ∗2

• 　∗2 ZHV20, in comparison with product (ZH20-X185)
• • ・Volume: Max. 50% reduction (17000 mm

  3

• •  ← 34000 mm

  3

• • )

  ∗3

• 　∗3 ZHV10, in comparison with product (ZH10-X185)
• ・In terms of body mounting, port connection, and passage diameter, this

product is compatible with the product (ZH-X185).
