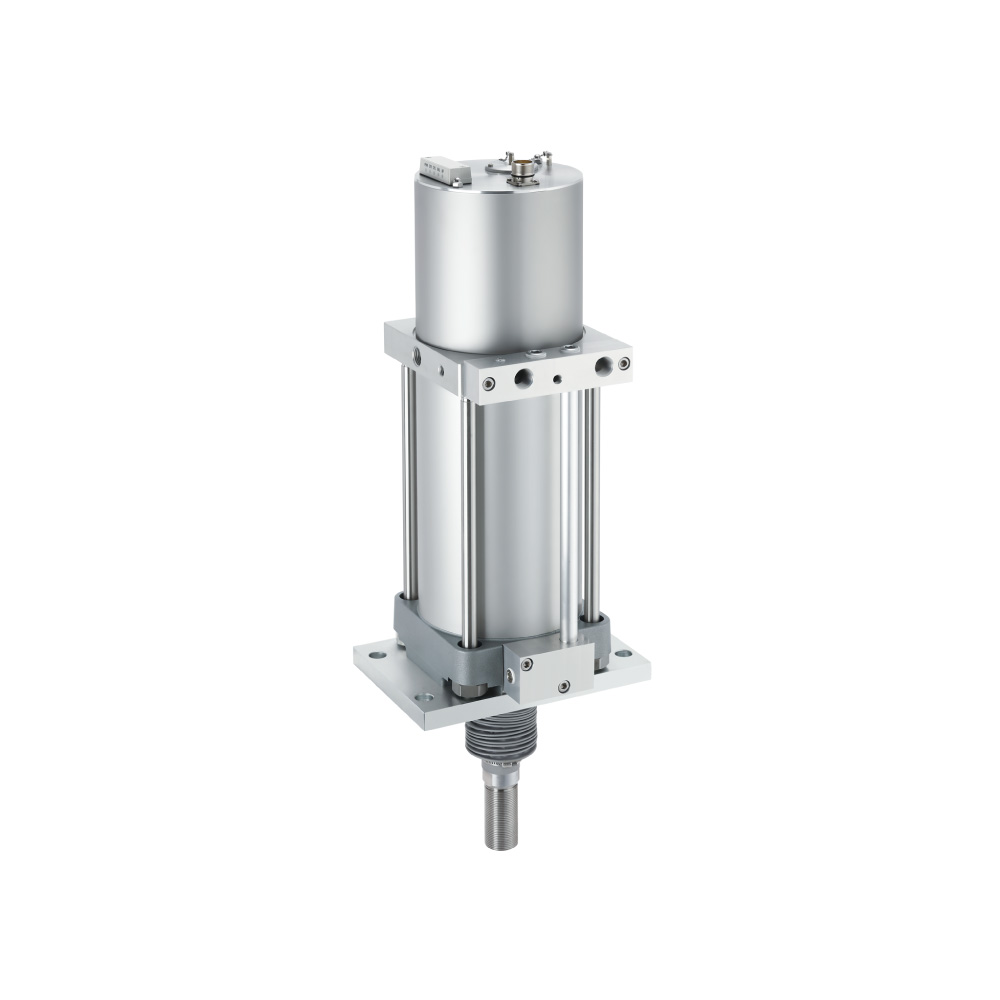

Air Servo Cylinder IN-777
-
- ・Capable of air cylinder multipoint positioning and control
-
- ・Fast response and high positioning repeatability
-
- Positioning repeatability: ±0.5 mm
-
- ・Easier maintenance due to unitization
-
- ・Built-in self-diagnosis function (LED lamp and signal output)
・Emergency stop of the piston when the air or power supply is cut
Features & Compatibility
■Capable of air cylinder multipoint positioning and control
■Fast response and high positioning repeatability
With a built-in position sensor, the servo valve can be used to control the flow rate on both the head side and the rod side of the cylinder, and it can also be used to position the cylinder.
■Cylinder with an integrated servo valve and controller
■Easier maintenance due to unitization
■Easy initial setting
Input an I/O signal to move the rod forward, and set the rod stop position to 20 mA (or 4 mA).
■Speed adjustment function
Capable of 10-level speed setting
■Built-in self-diagnosis function
(LED lamp and signal output)
(LED lamp and signal output)
■Fail-safe ports
If the air servo cylinder air or power supply is cut, air from the emergency tank can be supplied via the FA/FB port in order to allow for the manual operation of the air cylinder rod.
