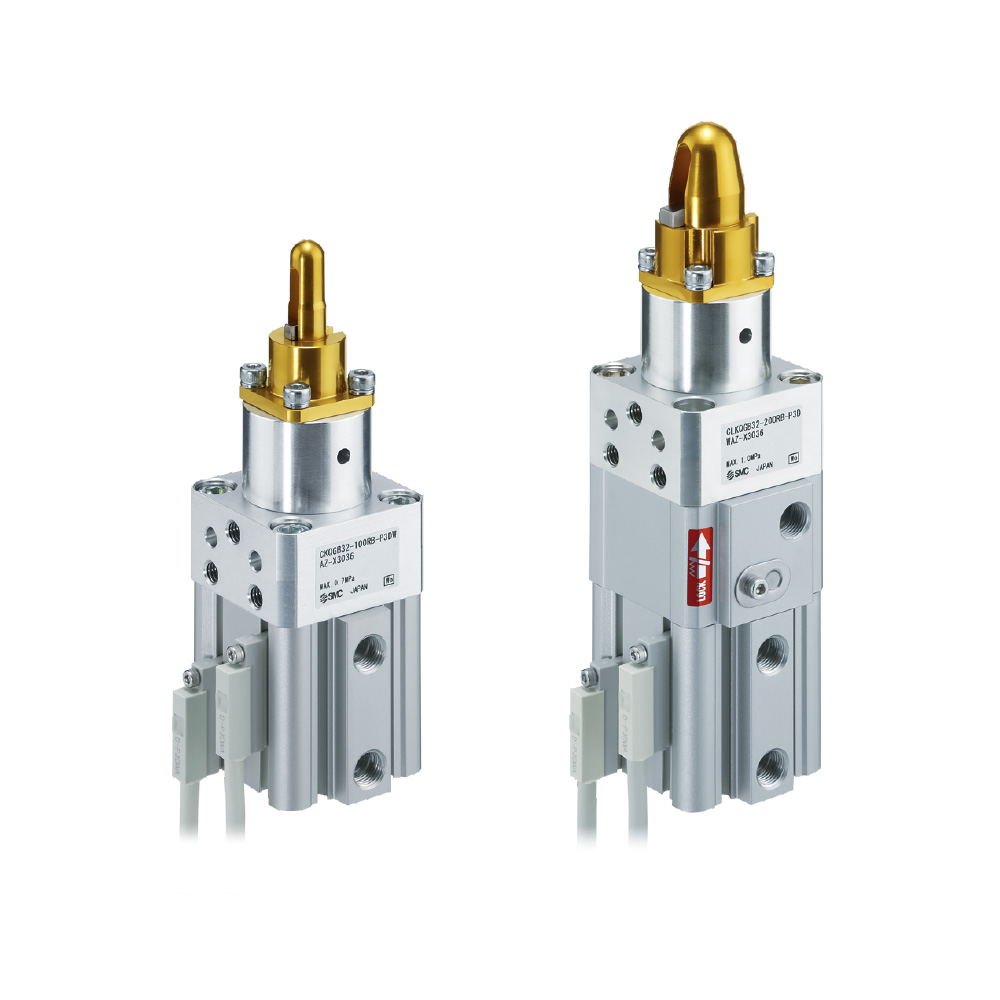

Pin Clamp Cylinder/Compact Type C（L）KQG32-X3036
-
- ・Lightweight: Weight: 41% reduction(900 g→530 g)
-
- ・Compact
-
- Overall length: 41.5 mm shorter(183 mm→141.5 mm)
-
- Body width: 4 mm shorter(50 mm→46 mm)
-
- ・Lock mechanism to prevent the dropping of workpieces during emergency stops
-
- ・Guide pin shapes for workpieces with ø8 to ø20 hole diameters
・Easy arm replacement
Features & Compatibility
■Lightweight:, Compact
■Lock mechanism to prevent the dropping of workpieces during emergency stops
■Round type and diamond type guide pins for workpieces with ø8 to ø20 hole diameters are available.
∗ ø10 to ø20 for the diamond type
■Fine adjustment of the clamping height is possible with shims. (Option)
■Easy arm replacement
The arm can be easily replaced without detaching the body and the cylinder by simply removing the connection pin.
■Auto switches are mountable on 4 surfaces.(Mountable on 3 surfaces for the D-P4DWm)
