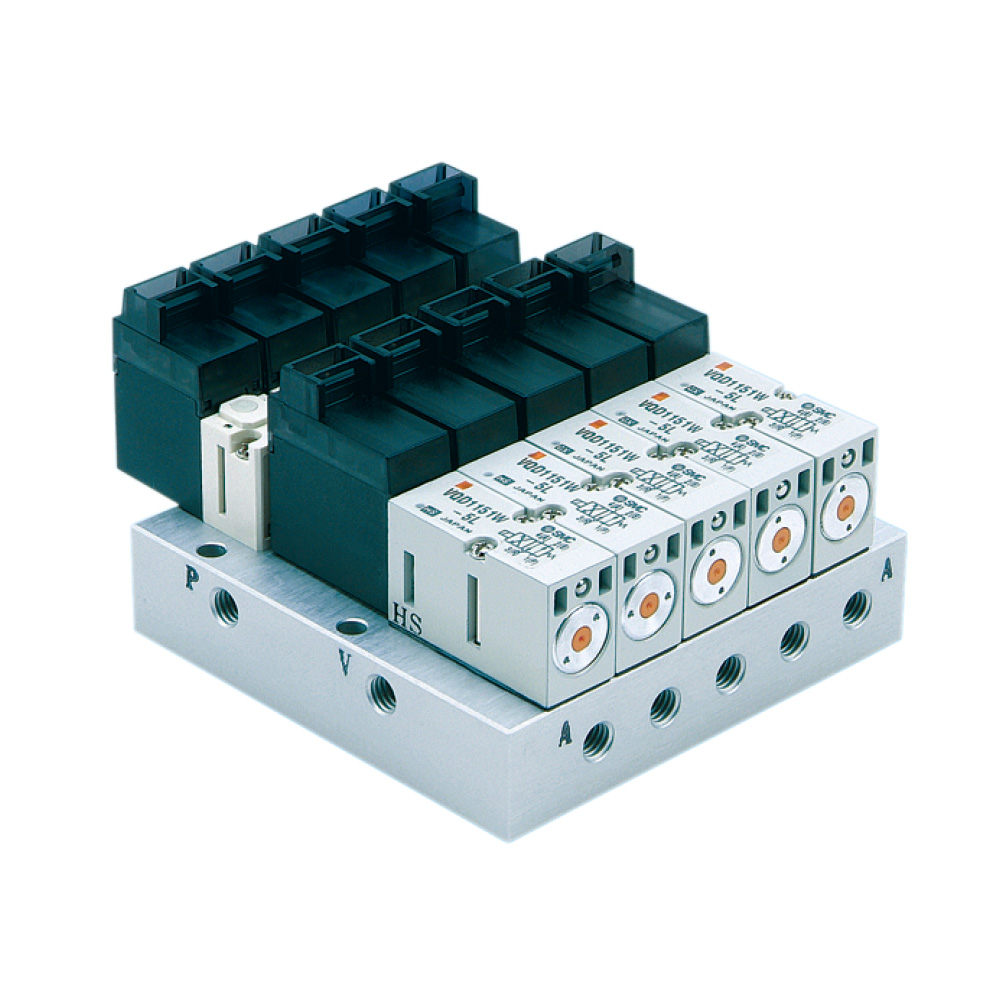

Vacuum/Release Unit VQD1000-V
-
- ・Applicable to 0603 chips
-
- ・Response speed: 13 msec (at the time of 500 mm*) /18.5 msec (at the time of 1000 mm*)
-
- ・Smooth workpiece removal with no overshoot
-
- ・There is no need for timing adjustment of switchback between vacuum and positive pressure.
-
- ・A throttle circuit is not required for release air.
-
- ・Suction filter: ZFC050 (Made to order)
* Distance from the unit to the work area
Features & Compatibility
Adaptable to 0603 chip
Response speed
13 ms（at 500 mm*）/18.5 ms（at 1000 mm*）
* Distance from the unit to the work area
Smooth detachment of a work piece without over-blow
The work piece will not be blown away when the air is released.
No need to adjust the timing when switching between vacuum and positive pressure. (single signal control)
No need to design a restrictor circuit for release air.
N.O. (Vacuum absorption type when de-energized) and N.C. (Vacuum shutoff type when de-energized) specifications are available.
